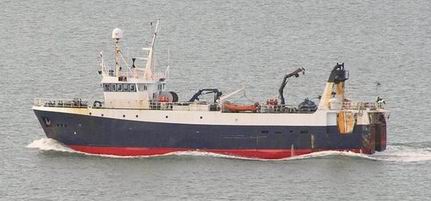

Freezer Stern Trawler Owners asking USD 750.000 43,88 Wichmann 1500 BHP 1979 Freezer Stern Trawler Type: Stern freezing factory trawler for fish and shell fish Built: 1979 Norway Conversions: Rebuilt/lengthened 1982, rebuilt 1987 Vessel p.t. LOA 44m Tonnage: 269 GT; 650 GRT;195 Net Dimensions: Loa 43.88 x Beam 9.00 x Depth 4.20 m Main engine: 1500 BHP Wichmann 5AX, at 375 rpm ( Overhauled May 06) Propeller: 3 blade C/P propeller in kort nozzle ( Overhauled Dec 04) Aux. engines: 1 x Volvo Penta 6 cylinders abt. 240 HP 1 Cummins KTA19 450 BHP ( New 1994, top overhaul May 06) Generators: 1 x 190 KVA Stamford 1 x Stamford SC534C-25 Deck equipment: Rapp Hydema PTS 3000 Winch Control (2002) 2 x trawl winches Rapp Hydema WDU 5001 (2000) 2 x gilson winches Rapp GVB 1200/4170 2 x bridle winches Rapp SWB 680/HMB 5 1 x outhauling winch 1 x anchor winch 1 x net sonde winch 2 x 1.5 ts/8 m Hiab cranes Processing plant: Factory for headed and gutted cod with bleeding bins 1 x Baader 424 H/G machine 2 x Marel Scales M1100 Packing tables Freezing equipment: 1 x Hallscrew HSP screw compressor (1985) 1 x Grasso compressor, Model N-3 ( 2001) 4 x York-Senior Marine Type Maxi-A-11-L Horizontal Plate freezers (2001) Freezing capacity: 25 ts/24 hrs. Hold capacity: 300 m3 freezing hold (-35°C) divided into three holds, of which one 70 m3 is lined with steel and useable for bulk fish Bunkers: Approx. 230.000 ltrs Electronics: All Electronics new in 2002 1 x Simrad RA-54C radar 1 x Simrad ES60 echo sounder 1 x Furuno FCV-1200L echo sounder 1 x Sea Plot PRO plotting system 1 x Olex plotting system 1 x Piscatus Plotting system 2 x Furuno net monitors CN 24 1 x Simrad ITI net monitor 2 x Clarion CD radios 1 x Furuno Weather Fax DFAX 1 x JRC NTD-825 GMDSS Radio Telephone 1 x JRC NDZ Inmarsat B 1 x JRC ND6127CC Inmarsat C 1 x Simrad Gyrocompass RGC50 1 x Autopilot Simrad AP 9 1 x Icom VHF IC-M127 1 x Icom VHF IC-M45 1 x Icom receiver IC-R75 1 x Furuno RD-30 speed log 1 x GPS JRC NOE-887C 1 x GPS Furuno GP-32 1 x Video Monitor coupled to 3 Deck Cameras 1 x Watch Alarm Deif- Malling 1 x Autronica fire alarm system BX-40/08 2 x Shipsmate RS8400 DSC Bridge: Fully Rebuilt in 2002 Accommodation: For 17 men. Galley, Mess and 3 of Cabins all renewed(2002) Various: In addition to DNV requirements vessel has extra ice strengthening in ice belt Rudder: make Becker 420 kW Norgear front gear for winches Price: Owners asking USD 750.000,-.

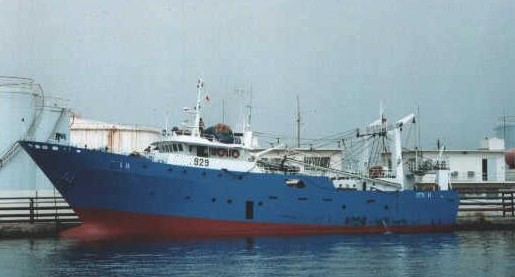

Freezer Stern Trawler Owners ideas EURO 1.500.000 alasund Shipbrokers try less to test 42,40 Blackstone 1470 BHP 1990 Freezer Stern Trawler Built: 1990 (ITL) Dims : Loa 42.40m / Beam 8.82m / Draft 3.95m Tonnage: GT 485 Gross Tonnage according the Olso Convention (1947) 349.58 NT 145 Main engine: Blackstone Type ESL8 MK2 - BHP 1470 Speed: 12 K Consumption 2.2T/Day G.O. Holds: 2 Holds Capa 270 cbm Aux Engs.: 2 x Mercedes Benz OM 423 DA 250 KVA Freezing: Compressors 2 x Sabroe TMSC 108 DA 45.000 KAL/H Winches: 2 x Double Drums 15t each Evaporator: Fresh Water maker Atlas AFGU 1-E DA 3T/Day Bunkers: Capa 145 T Fresh Water Capa 24 T Accomodation: 30 crew Fully Airconditioned Electronics: 1 Radar Koden 48 NM 1 Radar Koden 72 NM 2 VHF Sailor 1 Radio SSB Sailor 1 Telephone Sat Immarsat MINI-M 1 Aut. Pilot 2 Echo Sounder Koden 2 GPS Koden Price: Owners ideas EURO 1.500.000 as brokers try less to test.

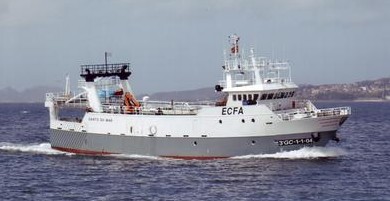

Freezer Stern Trawler EUR 3.300.000,-. 40,00 Wartsila 1500 BHP 2004 Freezer Stern Trawler Built: 2004 in Spain Classification: Bureau Veritas Accommodation: 23 men Hold capacity: 330 cbm Holds details: - 25 єC Dimensions: LOA 40.0 m x Beam 8.8 m Bunkers: G.O. Cap.: 250.0 lts F.W. Generators: AQUAMAR AQ4/5 of 4 tons/day Tonnage: GT 453.0 Freezing Capacity: 15.0 ts/day Freezing details: 3 Freezer TunnelsFreezing Cap.: 1650 kg per tunnel /cycle - 3 cycles/7 hours Freezing system: 3 Compressores Bitzer OSN-7471 K of 43,000 kCal/h Main engine: WARTSILA 6L20, BHP 1500, RPM 1000 Propeller: BALIСO-KAMEWA 55SK - 4 Blades - Diammeter 2500 mm Aux Engines: VOLVO PENTA D 12Alternator STAMFORD HCM534C23 of 365 Kva at 1500 rpm Emergency motor DEUTZ TD 229 Alternator STAMFORD UCM 274 D of 87,5 Kva at 1500 RPM Deck Equipment: Trawling Winches CARRAL MCM-4/8 of 300 bhp at 930 rpm. Ward Leonard System - Main Drum Wire capacity 2770 m/24 mm. Pulling Capacity 9200 kgs at middle druml, at 124 m/min2 Net Drums of pulling capacity 7100/3550 kgs at middle drum Processing: Cintas transportadoras Descabezadora HR-53Washing Machine, etc... Electronics: 2 Radar FURUNO FR 21251 Sonda KODEN CVS 8521 Sonda ELAC LAZ 50001 Net Sounder SACANMAR SCANMATE 61 Navtex ICS NAV-52 VHF GMDSS SKANTO DSC 10002 VHF NAVICO AZIS30Telephone GMDSS SKANTI TRP12512 SERPE IESM RESCUER SART1 STD-C SKANTI SCANSAT2 Software plotter SODENA TURBO 20001 Radioboy SERPE IESM KANNAD406WH1 Telefono via satelite y fax1 Gyroscopic SPERRY Price: EUR 3.300.000,-.

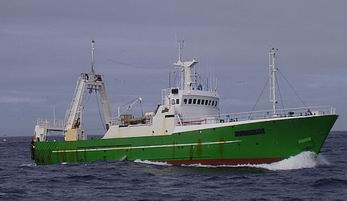

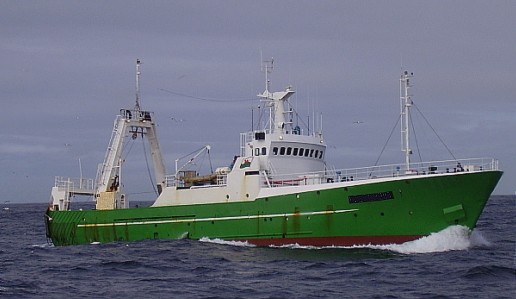

Fresh Fish Stern Trawler USD 700.000 47,20 Wichmann 1200 BHP 1973 Fresh Fish Stern Trawler Built: 1973 Norway Class: DNV +1A1 Stern Trawler Ice C - Valid to 2011 Tonnage: GT 555 Dimensions: Loa 47,20 x Beam 9,00 x Lpp 40,20 x Depth 4,28 mtrs Main engine: Wichmann 8S, 2t - 1200 BHP, 350 rpm Overhauled and classed in November 2003-new pumps for central gear Aux. Eng.: l x Volvo TD l2l CMC- new from 1988 in good condition 2005 l x Mitsubishi 6D2- new from 1998 in good condition Generator: 2 x Stamford 210 Kva - 3 x 220 V- (1973) reported to be in good condition Propeller: Wichmann Deck equip.: 2 x 16 tons Trawl winches (New 2003), Brattvaag D2MG 4185 with Syncro 1010 system (trawl winches can be increased to 20 ts each). 2 x 9 tons Gilson winches (New 2003), Brattvaag DMM4185 2 x Sweepline winches, Brattvaag DMM 4185 completely overhauled in 2003 1 x Outhauling winch, Brattvaag DMM 2202-lx Capstan Brattvaag rtj-243 1 x 2 tons Deck Crane type Maritime Hydraulik The hydraulic system is completely overhauled in 2003. Fish hold: 300cbm Bunkers: Fuel oil: 90 cbm - Fresh water: 83 cbm Electronics: Usual range of modern navigation and fish finding equipment Accommod.: For 16 persons, 8 persons new 2005 Various: The vessel was completely sandblasted, metalized in 1988 Price: USD 700.000

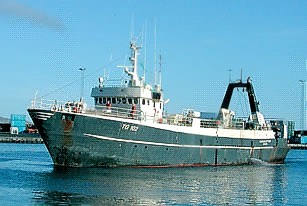

Fresh Fish Stern Trawler Asking price DKK 7.0 million 46,53 MAK 1501 BHP (OH 2003 / 2004) 1975 Fresh Fish Stern Trawler Type: Wet fish stern trawler Built: 1975 Norway Class: DNV + 1A1, Stern Trawler, Ice 1C + MV Tonnage: GT 568 297 GRT Dimensions: Loa 46.53 x Beam 9.01 x Depth 5.14 mtr. Main Engine: 1,501 BHP MAK 8M-451-AK Kumera MG 2822 front gear overhauled and classed 2003/2004 4,500 litres/24 hours Propeller: Hjelset, RKT-60/230, diam. 2,050 mm, in nozzle Aux. Engines: 2 x Mercedes Benz OM 355 A 185 (both overhauled 2004) Deck Equipment: 2 x Brattvaag Split Trawl Winches, DMG 6300 (new 1989) 4 x Brattvaag DSM 2202 (new 1987) 1 x Brattvaag DMM 2202 (new 1987) 2 x Brattvaag DMM 4185 (new 1987) 2 x high pressure Aux. Winches (new 1987) 1 x high pressure Aux. Winch (new 1985) 1 x Anchor Winch (new chain 2003) Brattvaag Data-Synchro Autotrawl System (new 1989) 1 x Helia HMR-30-11-2S (new 1997) Winch overhauled 2003 Hold Capacity: Apx. 280 mі Bunkers: Fuel oil: Apx. 124 mі Fresh water: Apx. 47.5 mі Accommodation: 21 men (new 1997) Electronics: Good range of equipment (list available) Various: Tenfjord Steering Gear New Antiroll Tank 2003 Flow Ice Machine and Tank New boat deck done & new MOB crane with el/hand driven winch Hull total renewed with new plates on sides and roof 2003 Refrigerating in hull New oil separator 2003 Septic tank and systems 2003 New rescue boats Viking 24 persons 2003 Satellite TV/Radio 2004 A major of Class work has been done in 2003, such as factory deck, trawl deck and some brackets and plates in sides on trawl deck. Price: Asking price DKK 7.0 million - try offer

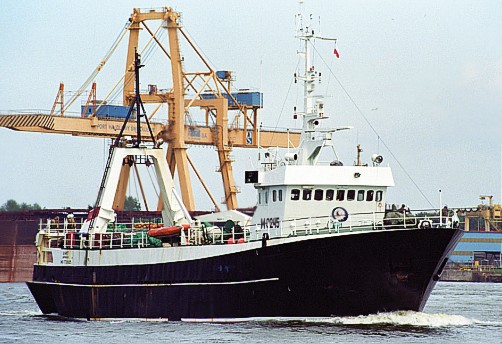

Wet (Fresh) fish trawler Звоните 46,50 Wichmann 1800 BHP 1979 Fresh Fish Stern Trawler Type: Wet fish trawler Built: 1979 Norway Conversions: 2004.11 Made Capital Repairments : New Optimar Ice Gel machine ( liquid ice from sea water ) installed. Which improve production to 30 tons of H/G fish for a day. Disassembled all fabric transporters ashore and repaired all hydraulic system and motors and plastic gearwheels. Check Main engine with changing 2 cylinders and all sealing in accordance with DNV recommendations. Made Ultra Sound Diagnostic of all pipes for Brattvaag hydraulic system and change 140 meters pipes. Sanding and painting all haul of the vessel. Class:DNV +1A1, Stern Trawler ICE C Class Status: Classification Certificate, issued 2004-02, expires 2009-02 International Load Line Certificate, issued 2004-02 Main class annual, last date 2007-06, Bottom complete (Last: Out Of Water), last date 2006-10 Propeller shaft arrangement, oil lubricated, last date 2006-10 Tonnage: 564 GT 169 NT Dimensions: Loa 46.5, Lpp 43.0 x Beam 9 x Depth 5.0 m Main engine: 1800 HP Wichman 6AX. Propeller: Prop. in nozzle approx. 2000 mm Aux. engines: 2 x Mersedes Benz OM 404A, 369 HP Generators: 2x generators 200 kW Deck equipment: 2 x 20 ts split trawl winches, make Brattvaag 1 x 20 ts middle winch for pelagic trawling, make Brattvaag 2 sweep line winches, make Brattvaag 2 x gilson winches, make Brattvaag 5 x small aux winches, make Brattvaag Ulstein data syncro 1030 auto trawl system Marine deck crane 2.7 ton Processing plant: The factory is arranged for fresh fish . Factory rebuilt in end of 2004. 2 x Jutland gutting machines Various conveyers, 4 big cans for washing and sorting fish 1 x heading machine for fish 1 x Rotating Washing machine Cooling equipment: 1 Optimar Ice Gel Machine produce liquid ice from salt water up to 30 t of production for a day with best quality of fish and consistence of ice. Keep good quality of fish up to 12 days. Hold capacity: Cooling up to -5 Degree below zero 130 ts wet fish in plastic boxies. 3250 boxes of 60 litres each (40 kg fish) 1 hold approx. 360 m3 Bunkers: Fuel oil approx. 125 m3 2 x Fresh water approx. 22 m3 each 1 x fuel oil separator 1 x lub. oil separator 1 x evaporator Alfa Laval 5t for a day Safety Equipment: 2 x Liferafts PSN 20 MK Electronics: GMDSS Equipment: 1 x Furuno DSC SSB Radio Station 2 x Furuno DSC VHF 2 x VHF portable TR 20 1 x Furuno Inmarsat-C Station Felcom 15 1 x Furuno Radio Telex Station 2 x printers OKI 280 Other Electronic Equipment: 1 x AIIS Station 2 x Furuno VHF 1 x VHF direction finder 2 x Radar responder Tron Sart 1 x Cospas Sarsat Samyung Sep 4 1 x Radar Furuno FR 2130 S. w/Arpa. 1 x Radar Furuno FR 2110 w/Arpa. 1 x Log Galatee Ben 1 x Fishing Echo sounder Simrad ES-60 1 x Echo sounder Furuno 1 x Gyro Anschutz 1 x Magnetic Compass Neptun 1 x Scanmar installed but not connected 1 x Fire central 1 x 20 stations Vingtor intercom 1 x Navtex NT 900 1 x Controllable Pitch Propeller Goos En (Electric) 1 x Autopilot Anshutz Accommodation: For 17 men Various: Tenfjord steering machine 1 x HeliSep 1000 bildge water pump

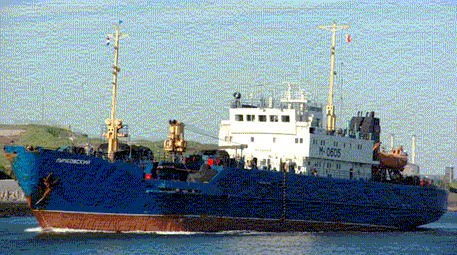

Reefer Cargo vessel Owners asking US$ 900.000 76,67 8-NVD 852 Kw 1984 Type: Reefer Cargo vessel Built: 1984 Klaipeda Class: RS Tonnage: 2424GRT, 727 Net Dimensions: Loa 76.67xBeam13.00xDepth 6.50 Main Engine: 8NVD 48A-2U, 852 kW Reefer holds: 1178.4m3 (4 freezing holds+1 fishmeal hold)+ 75.7m3 (canned fish hold) Approx. 900 t of frozen fish, could be enlarged to 1250t. Speed: 8 knots Consumtion: 3.8t per day Bunkers: Oil 250t Accommod: For min 19 men, 24 rescue places Price: Owners asking US$ 900.000

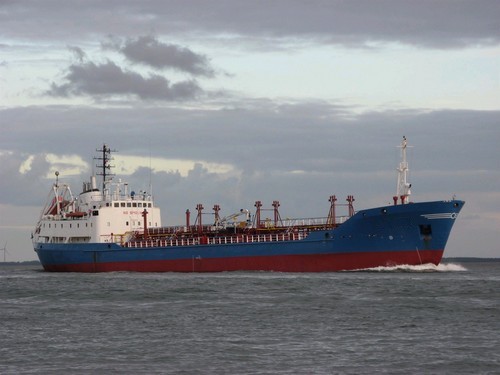

Ice class 1A- 4400 DWT - Oil tanker (ideal to operate with fishing fleets) USD 5.0 M 100,80 Характеристики в обработке 1998 / 1969 Характеристики в обработке

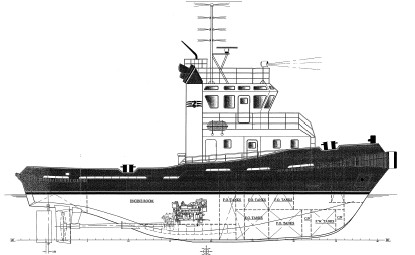

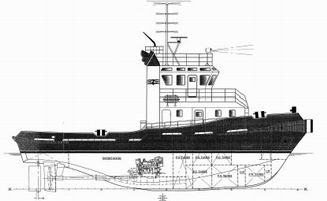

Harbour tug EUR 2.000.000,-, 23,00 2 x Caterpillar 1440 BHP 2007 Harbour tug Type: Harbour tug Built: 2007 (June) Greece Class: RINA (IACS compliant) Bollard pull: 22 tons Tonnage: GT 80 tons - Net 20 tons Dimensions: Loa: 23.00 x Beam 7.46 x Depth 3.65 mtrs Main engine: 2 x Caterpillar 3412 C - Total 1440 BHP Aux. Eng.: 1 x 85 KVA Volvo 1 x 60 KVA Deutz Propellers: 2 x fixed propellers in nozzles Deck equip.: Towing hook type Mampaey Quick release towing hook DCX 25 tons Bunkers: Fuel: 47 cbm - Fresh water: 5 tons Electronics: Usual range of modern navigation equipment Crew: 1 x officer + 2 x 2 crew = total 5 men Price idea: EUR 2.000.000,-, try close offers

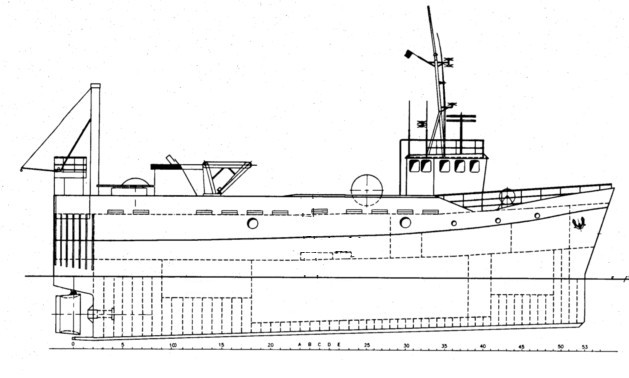

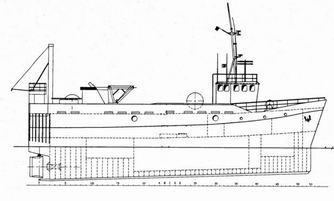

Fresh Fish Stern Trawler USD 1.100.000 28,89 Grenaa 900 BHP (1987) 1982 Type: Wet fish stern trawler Built: 1982 Re-built: Lengthened 1998 Tonnage: GRT 179.8 - NT 75.2 - GT 250.6 Dimensions: Loa: 28.89 x Beam 7.24 x Registered length 26.90 x Depth 6.05 mtrs Main engine: Grenaa 6FR-24TK - 900 BHP (New 1987) Aux. eng.: Man D-2566 ME 114 Kw Mitsubishi 6D16-T 100 Kw Propeller: Kort nozzle (steering nozzle) diameter 1.75 mtrs Deck equip.: RAPP TWS-5020/WHD60 23 tons trawl winch Capacity 1100 fm of 24 mm wire (2050 m) 1 x cod end winch type Rapp 2 x sweepline winches type Rapp 2 x Gilson winches type Rapp 1 x Outhauler winch 1 x Midwater trawl net drum type Rapp 1 x Anchorwinch / Windlass type Rapp AW-300 with drum and capstan Auto trawl system type Rapp PTS-3000 Deck crane Factory: Good system for fresh fish handling - hold fitted for tubs Fish hold: Chilled by spirals in fish hold ceiling Acccommod.: 3 x 1 man - 1 x 2 man - 2 x 3 man = total 11 men Large and good oil skin room Life saving: 2 x 12 man Viking life rafts Inergen co2 system in engine room 2 x Breathing apparatus / suits 12 x Immersion suits Price: USD 1.100.000,-.

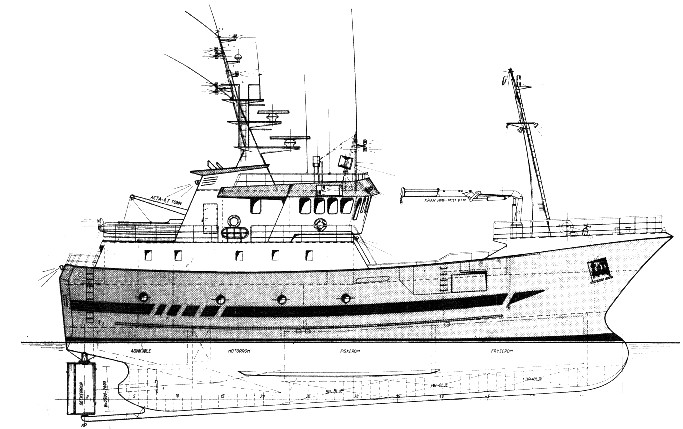

Freezer Autoliner DKK 20.000.000 34,00 Caterpillar 865 BHP 1988 Type: Freezer Auto Long Liner Built: 1988 Class: DNV +1A1, Ice C Tonnage: GT: 466 / NT: 105 Dimensions: LOA/LPP: 34.00 m Beam: 8.20 m Depth: 3.90 m Main Engine: Caterpillar 3508 DITA 865 BHP Propeller: Hundested Aux. Engines: 2 x Caterpillar 3406 - 295 HP Generators: 2 x 220 kVA Deck Equipment: 1 x Brattvaag Line hauler Winch 1 x Brattvaag Anchor Winch 1 x Mustad Autoline System 35,000 hooks 2 x HMF Nautick Deck Cranes Hold Capacity: 1 x Freezer Hold of 125 cbm 1 x Freezer Hold of 125 cbm 1 x Bait Hold of 50 cbm Processing Plant: Processing Line, Washing Bins and Conveyor Belts 1 x Baader 162 Heading Machine 1 x Optimar Slush Ice System Freezing Equipm: 2 x 12 stations Vertical Plate Freezers 1 x 20 stations Vertical Plate Freezers 1 x Freezing Tunnel 3 x Bitzer Compressors 1 x Boch Compressor Freezing Capacity: Between 10 and 13 ts/day Bunkers: Gas Oil: 80 cbm (incl. Roller Tank) Fr. Water: 11 cbm / Evaporator: 4 ts/day Electronics: 1 x Radar FURUNO FR-2110 Arpa 1 x Radar RAYTHEON M-25 Arpa Pathfinder 1 x Long Range Transmitter SAILOR 1 x Echo Sounder SIMRAD EQ 100 / SIMRAD CF 130 Screen 1 x Echo Sounder JRC JFV 250 1 x VHF SAILOR 1 x SHIPMATE RS 5310 1 x SHIPMATE RS 400 CC 1 x RAYSTAR 920 1 x Plotter JRC NWU-5 / NDC 150A Radar Adapter Map System 1 x Auto Pilot ROBERTSON 45 1 x Auto Pilot ROBERTSON AP9 Mk II 1 x Gyro Compass SPERRY 1 x Intercom PHONTECH Mobile Phones 1 x Inmarsat Phone Accommodation: For 15 crew - 2 x 1 + 6 x 2 (7 x 2) men Various: Steering Gear: Tenfjord H-330-115/ESG-420 Rudder: Becker Speed: 11 knots Price: 20 Mill. DKK

Миниботы "Аякс" и "Нептун" Основные характеристики: Класс Речного Регистра: КМ II СП-АЗ. Длина габаритная: 17,12 м. Ширина габаритная: 4,9 м. Высота борта: 2,1 м. Осадка: 1,7 м. Водоизмещение в полном грузу: 58,6 т. Мощность СЭУ: 186 кВт. Скорость хода: 9-10 узлов. Груз(улов): 3,5 т. Объём рыбного трюма: 11 м.куб. Грузоподъёмность: 5,8 т. Экипаж: 4 человека. Автономность по продуктам: 5 суток. Дальность плавания: 1200 миль. Назначение: промысел рыбы пассивными и активными способами с хранением улова в охлаждаемом трюме. Район эксплуатации: прибрежные районы, открытые моря с удалением от укрытия 50 миль, закрытые моря, озёра и водохранилища. Отличительные особенности: cудно с кормовым размещением машинного отделения, имеет одновальную силовую установку с винтом в поворотной насадке. Рубка изготовлена из алюминиево-магниевого сплава. На корме расположены два роульса для выборки рыбопромысловых снастей, траловая лебёдка, сетевыборочная гидравлическая машина и манипулятор гидравлический грузоподъёмностью 2,2 т. Предусмотрены средства связи и навигации фирмы "Фуруно". Возможна доработка по требованию заказчика. Яхта "Чайка" Яхта "Чайка" Яхта "Акула" Яхта "Акула"
